Here's my sketch for my setup (wind, solar, ghurd control)

Post a reply
<<

morglum

Posts: 52

Joined: Mon Nov 16, 2009 2:27 pm

Location: Québec, Canada

Post Mon Nov 23, 2009 4:07 am

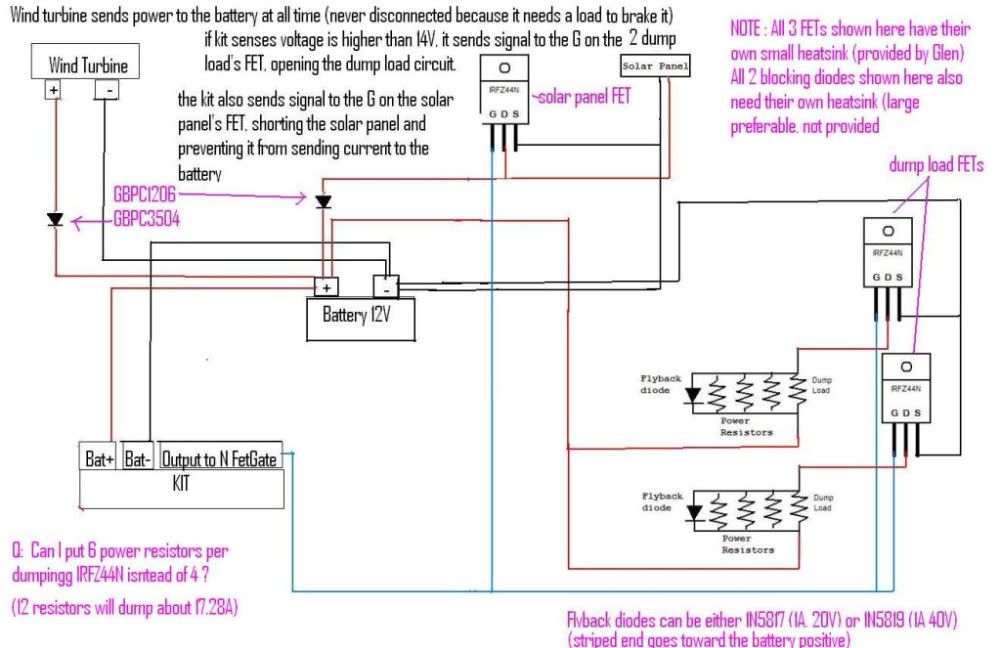

Here's my sketch for my setup (wind, solar, ghurd control)

-Any obvious mistake?
-Also, where do you guys put power resistors? In their own project box?
-And where do you put the N-Fet for the solar panel/dump loads? In the charge controller's box?

Cheers1


<<

morglum

Posts: 52

Joined: Mon Nov 16, 2009 2:27 pm

Location: Québec, Canada

Post Mon Nov 23, 2009 4:28 am

Re: Here's my sketch for my setup (wind, solar, ghurd control)

replying to myself on:
"And where do you put the N-Fet for the solar panel/dump loads? In the charge controller's box?"

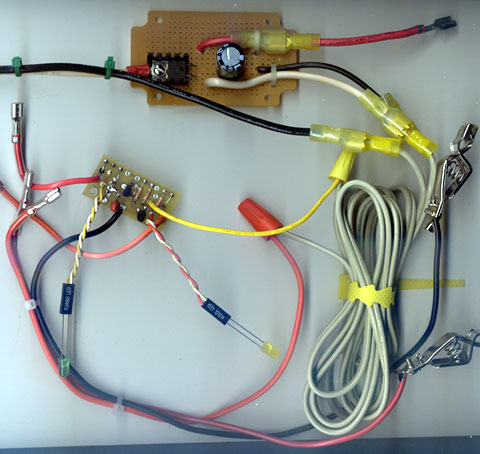

This guy just puts it on a PCB near the dump load.. I should have thought about that myself :)


http://www.fieldlines.com/story/2008/3/31/141234/584
